Scanner connection

The hardware part of that intraoral scan comprises a handle, a handle connecte wire, a connecting box, a power adapter and a base. Connect these parts so that the scanner works properly.

Connect the scanner handle with the connecting wire: insert the wire into the Type-C interface at the tail of the handle, adjust the position of the tail cover, and screw it into the thread at the tail of the handle. During locking, it is necessary to avoid skewing the tail ring and damaging the thread.


Insert the handle cable into the Type-C connector of the connection box. Since the interface is internal, it is necessary to confirm that it is plugged in place. Connect the power adapter to the connection box.

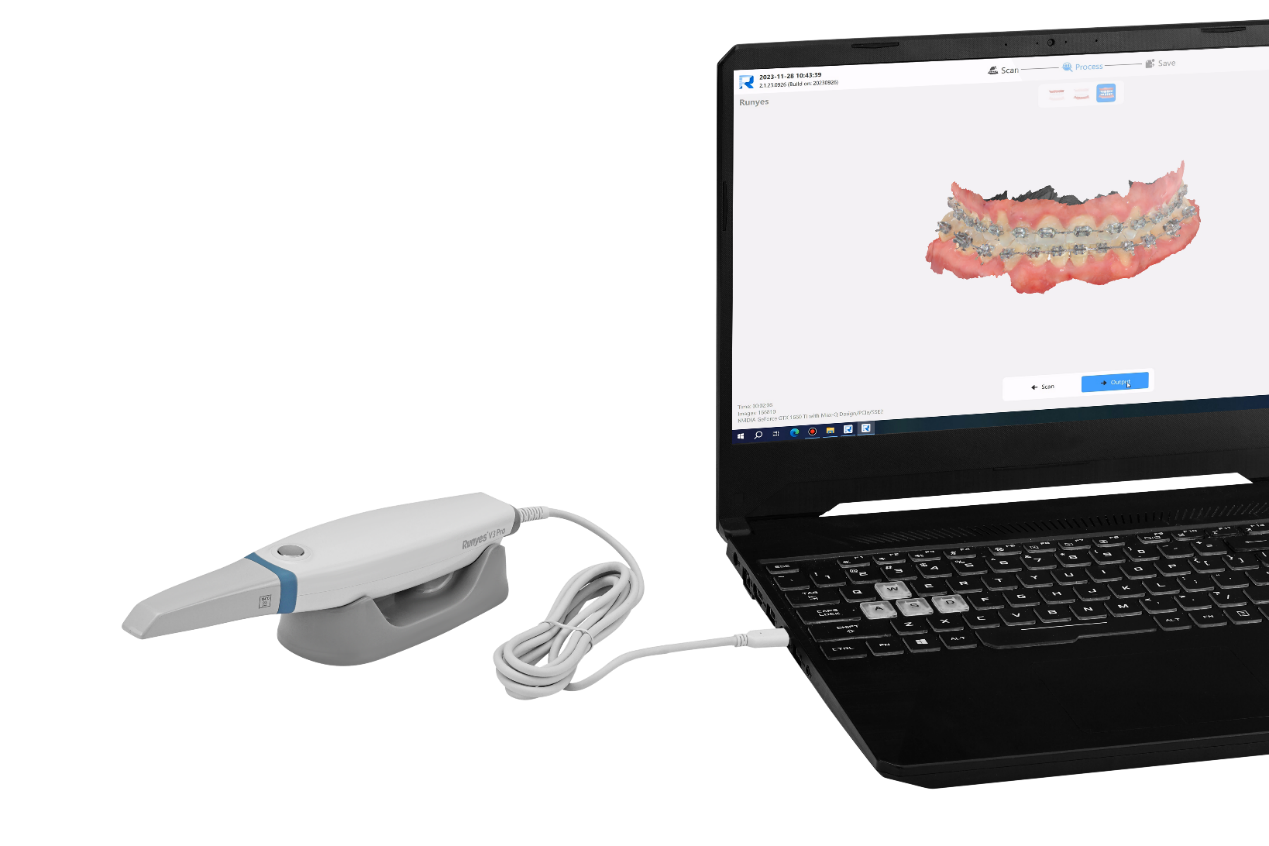

Insert the USB cable of the connection box into the USB interface of the computer, and place the handle on the base to complete the system connection.
