Computer Settings and Compatibility Check

After the software installation is complete, please follow the steps below to check the computer settings to ensure that the intraoral scanner can perform at its best during subsequent use.

Verify the Graphics Card is Operating Normally​

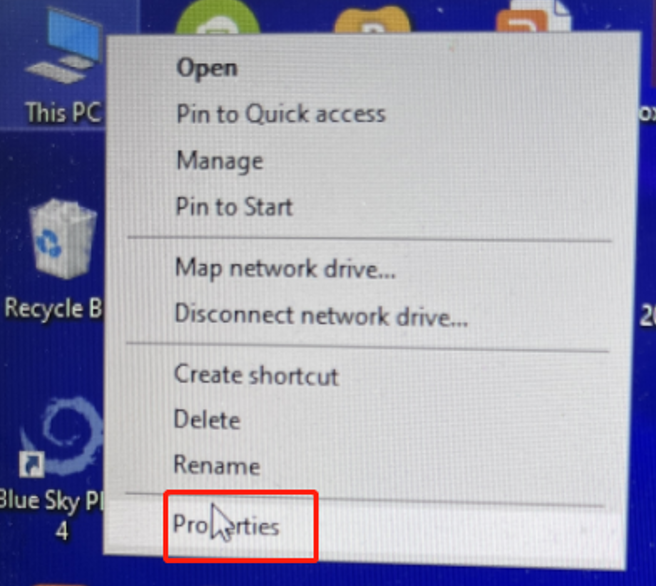

Right click on This PC, select Properties.
Alt text

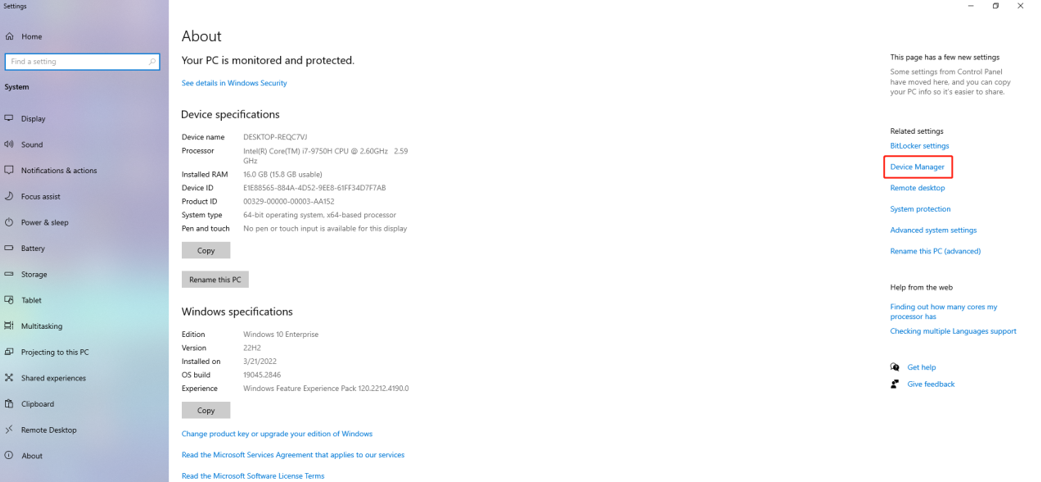

Select Device Manager.
Alt text

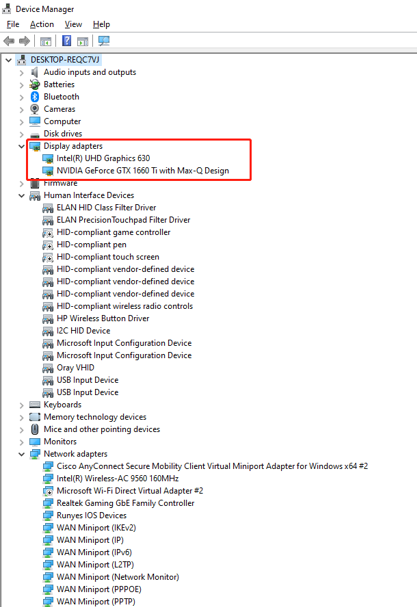

Click "Display Adapter" to check whether the NVIDIA driver is normal.
Alt text
If only the integrated graphics card is working, clean install the graphics card driver.

Graphics Card Installation, Update, and Setup Procedures​

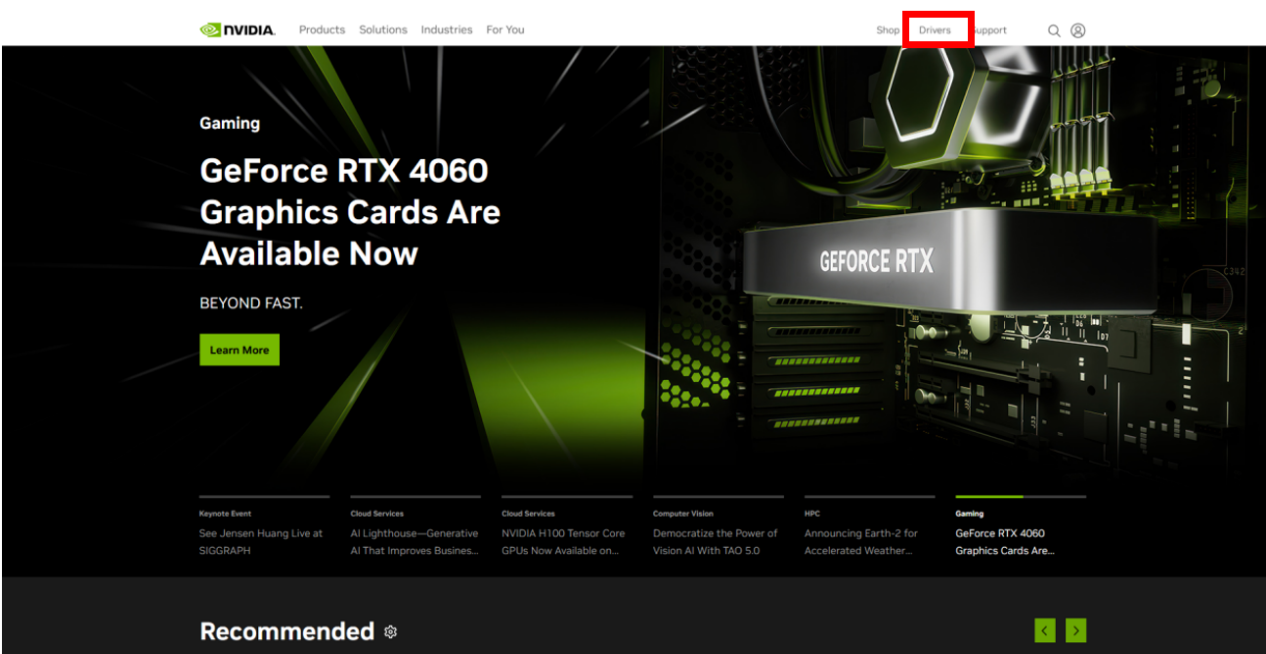

  1. Enter the official website of Nvidia, click "Driver" on the upper right.
    Alt text

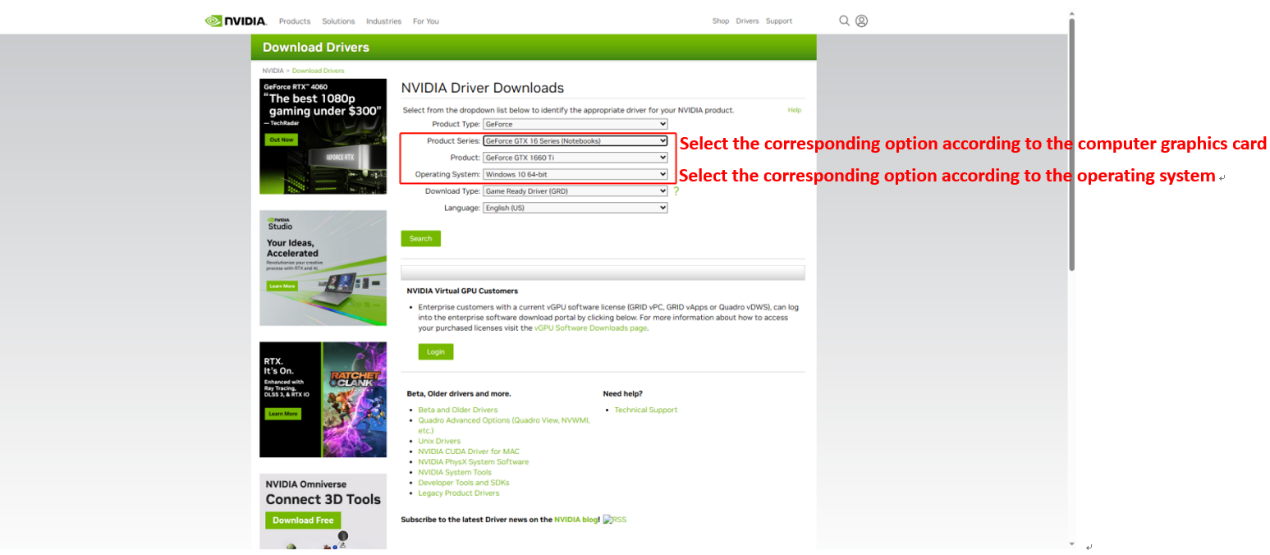

  2. After selecting the driver option compatible with the computer, click "Search".
    Alt text

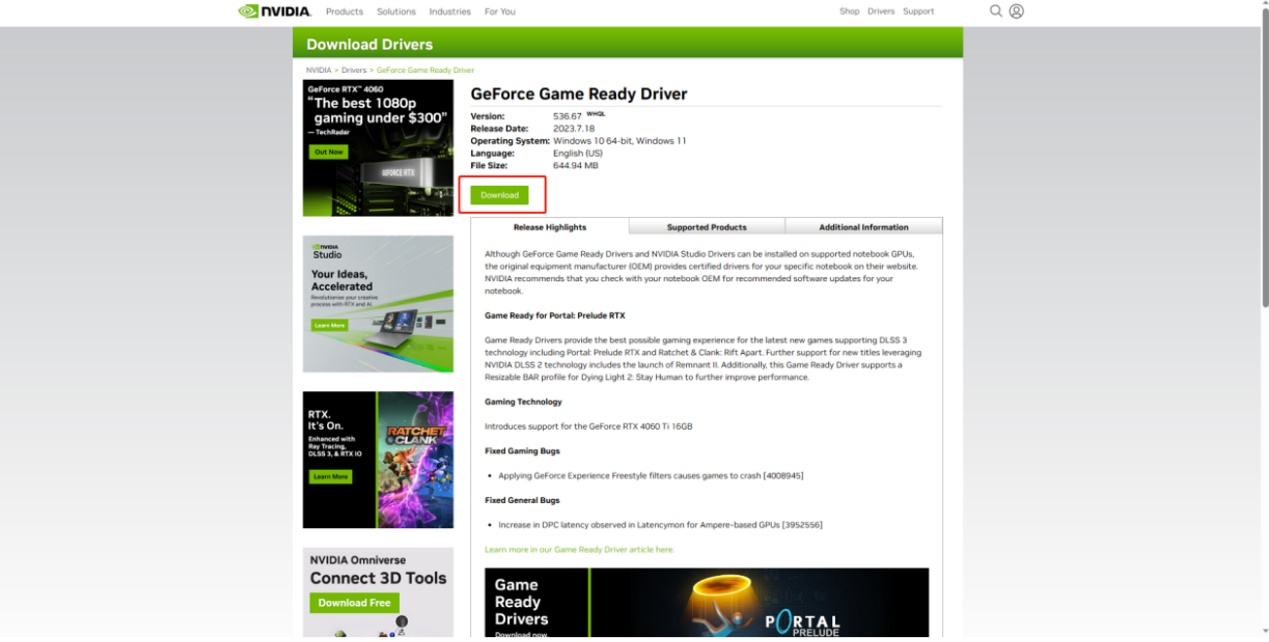

  3. Click "Download".
    Alt text

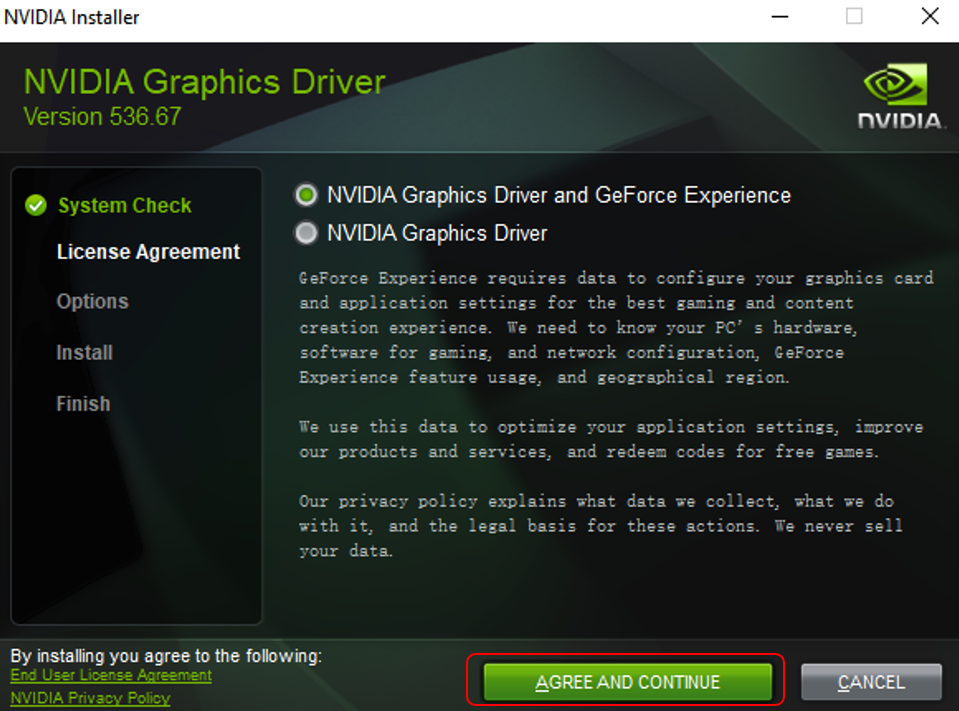

  4. After downloading the installation package, enter the installation, click "Agree and continue".
    Alt text

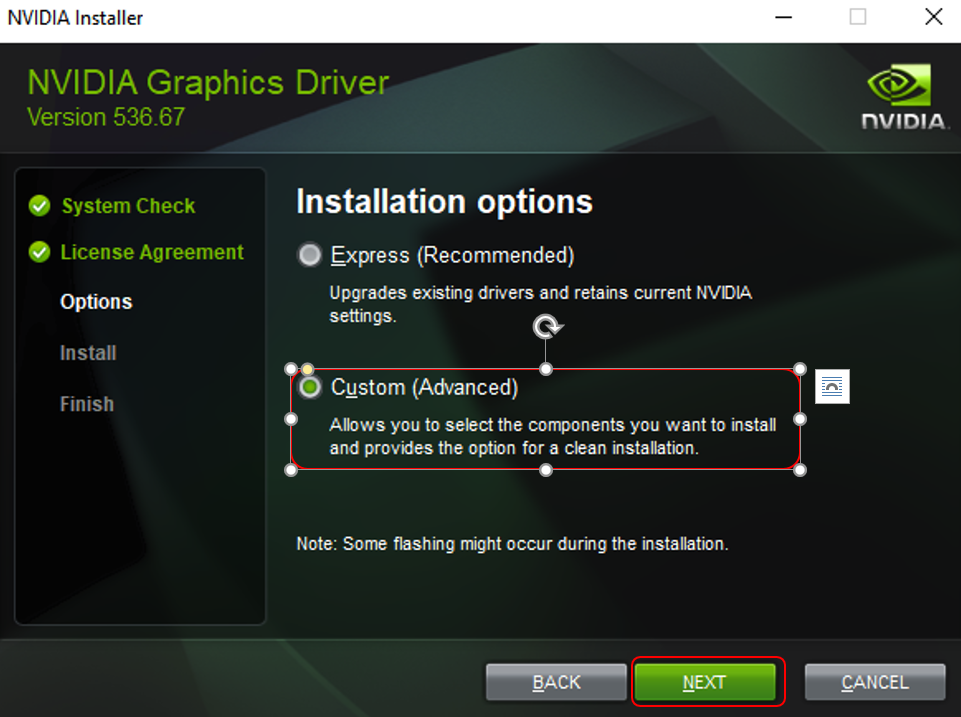

  5. Select (Custom), click Next.
    Alt text

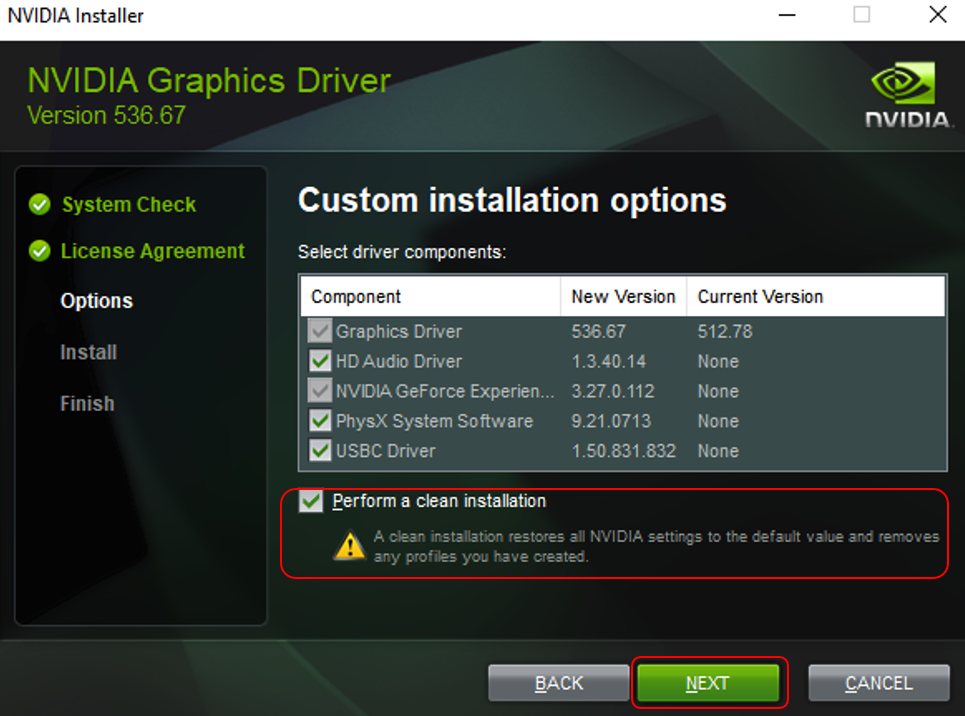

  6. Select clean installation, click Next.
    Alt text
  7. Wait for the installation to complete, restart the computer.

Configure the Graphics Card Control Panel​

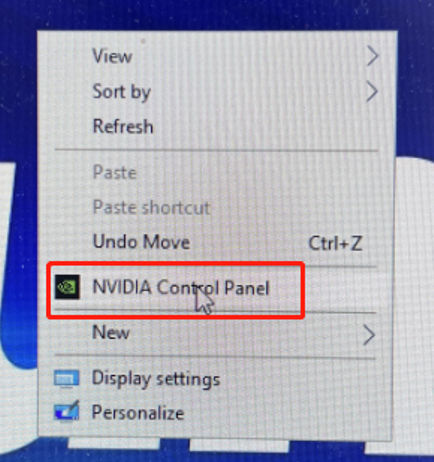

Right-click on the Desktop
Alt text

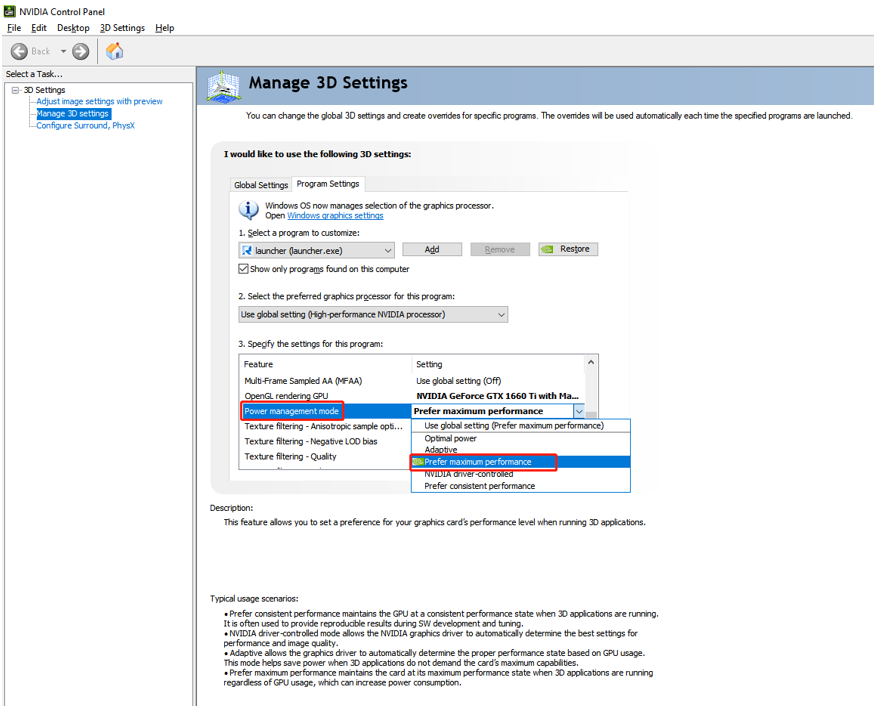

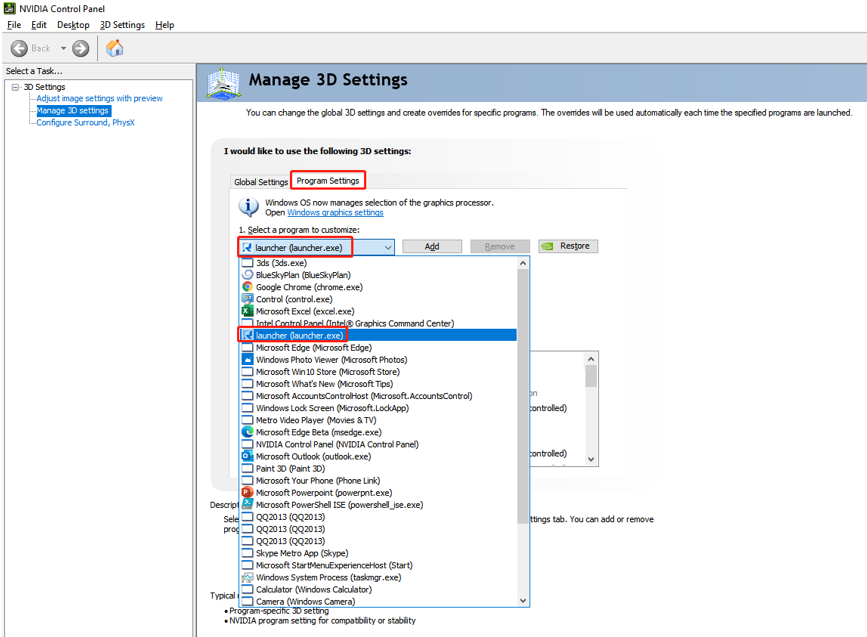

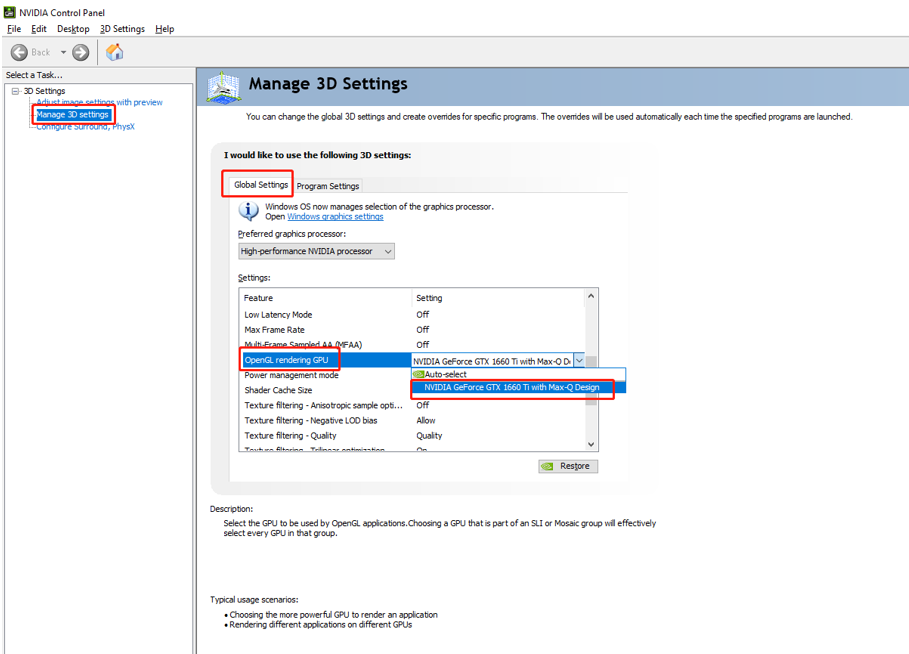

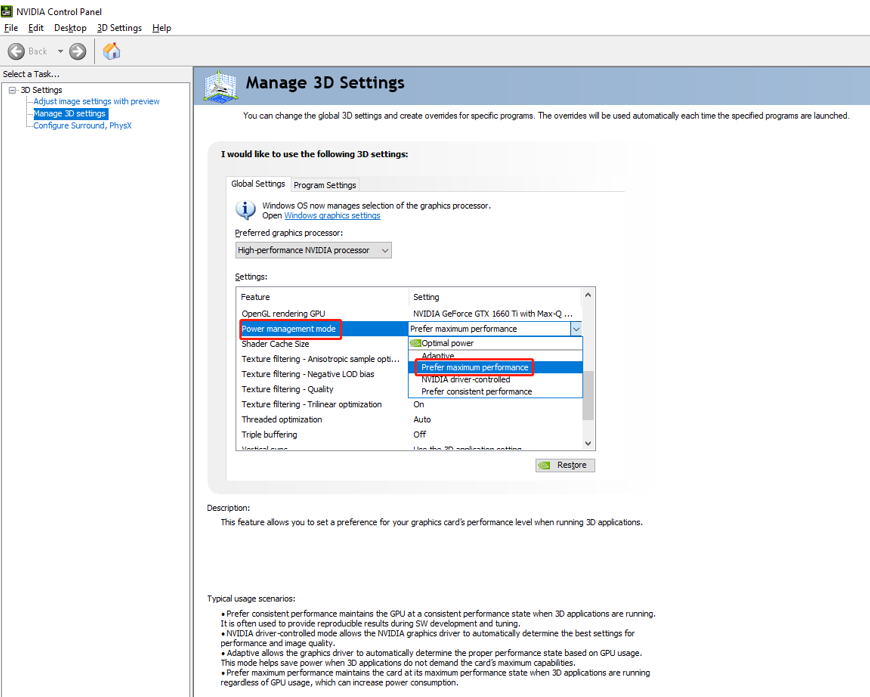

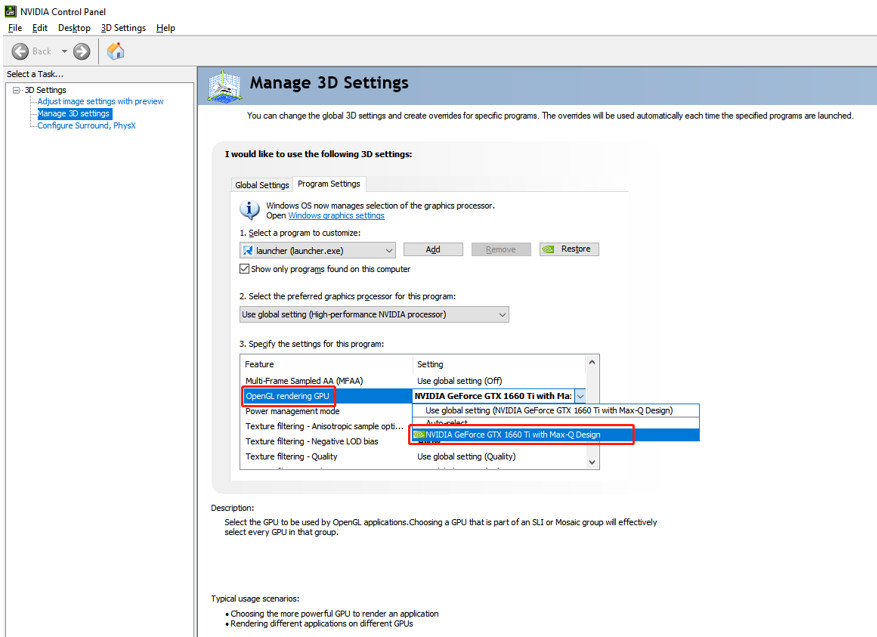

Set according to the areas marked in red in the image below.
Alt text
Alt text
Alt text
Alt text
Alt text
After setting up, please don't forget to click "Apply".

How to Check Computer Settings​

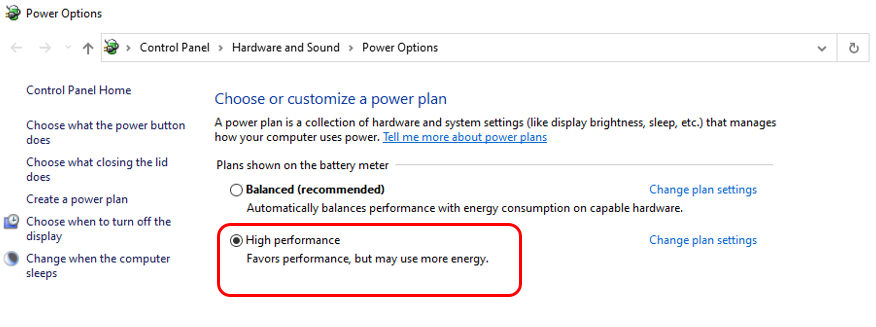

High-Performance Power Settings

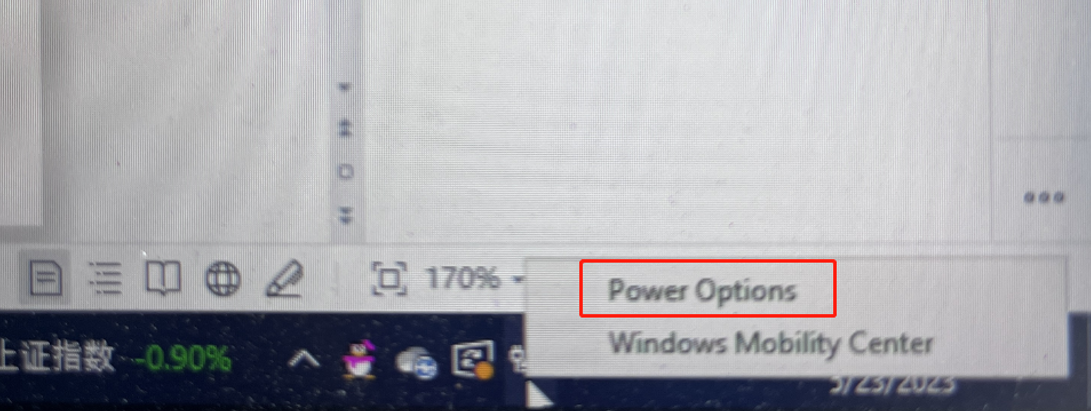

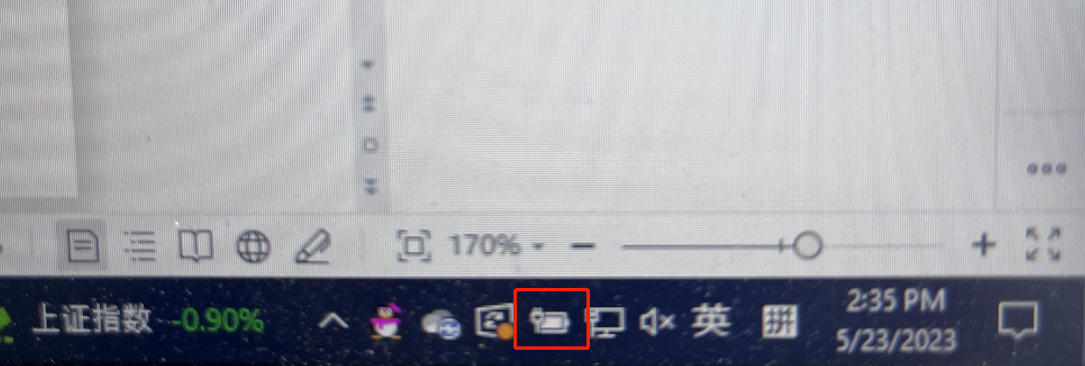

Right-click the Power icon and select Power Options.
Set according to the areas marked in red in the image below.
Alt text
Alt text
Alt text

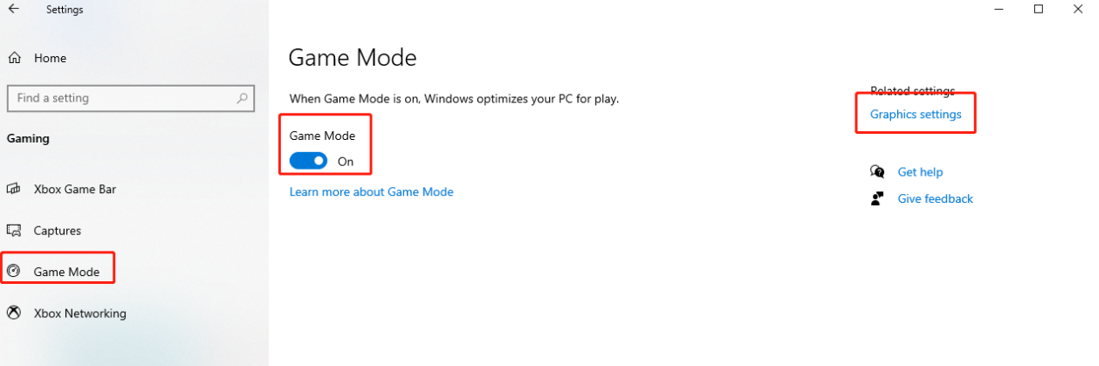

Enable Game Mode

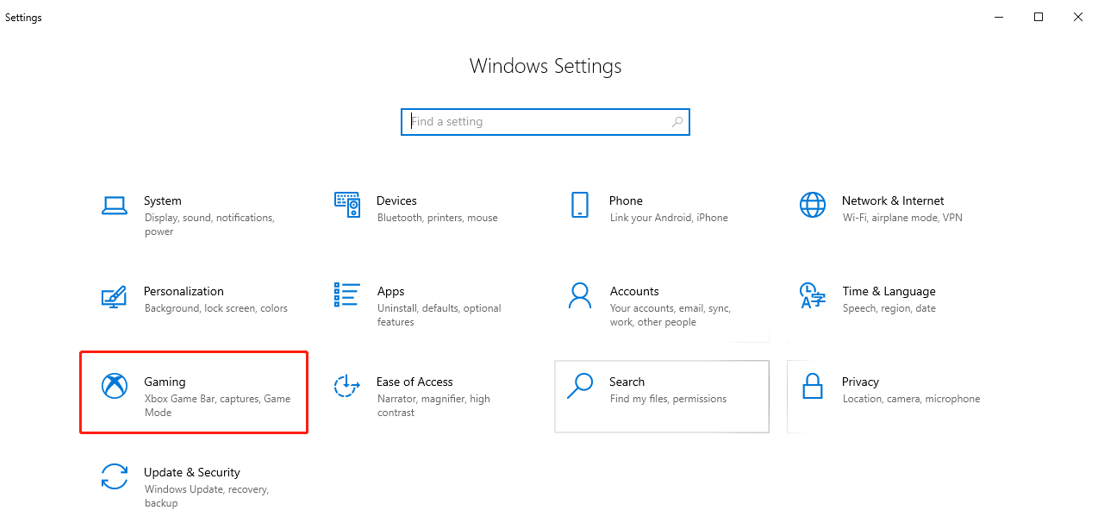

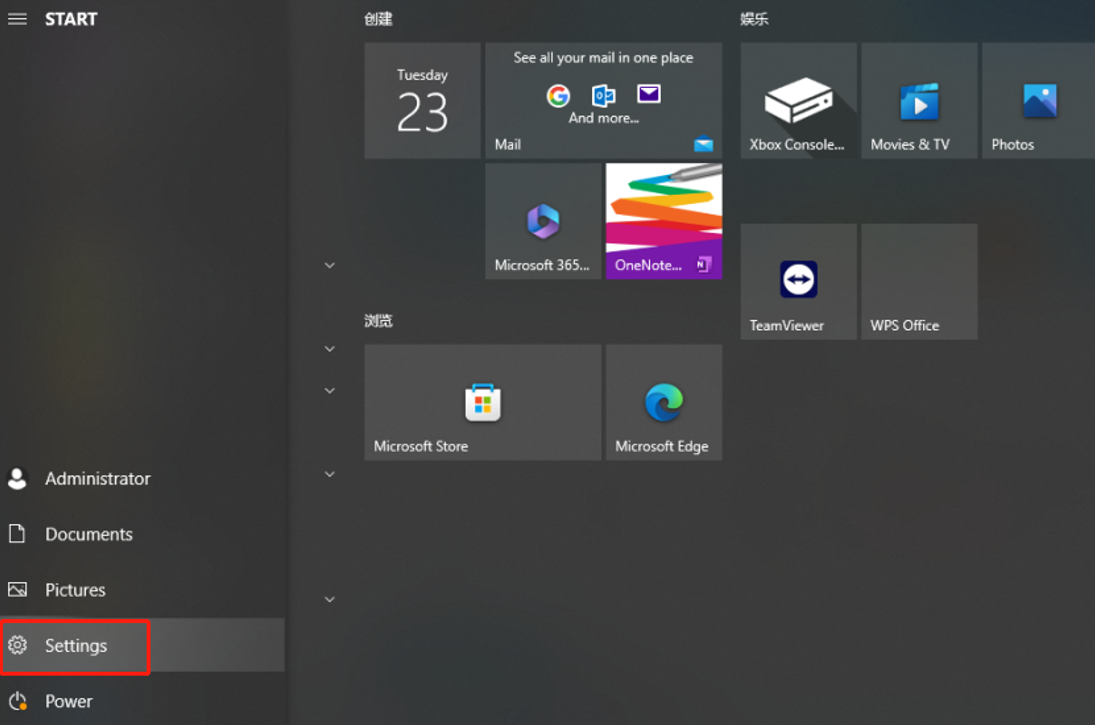

Settings - Game - Game Mode (On)
Set according to the areas marked in red in the image below.
Alt text
Alt text

Alt text

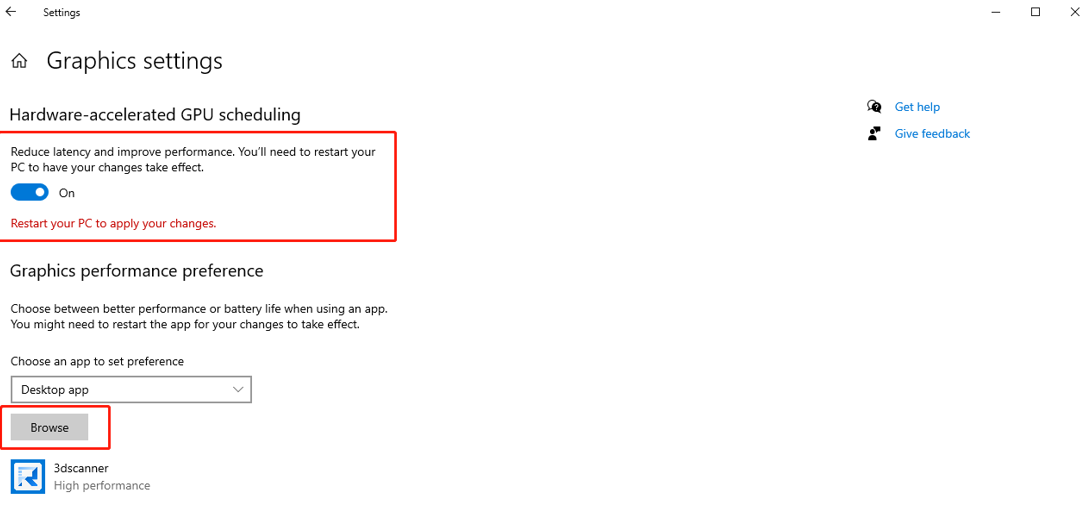

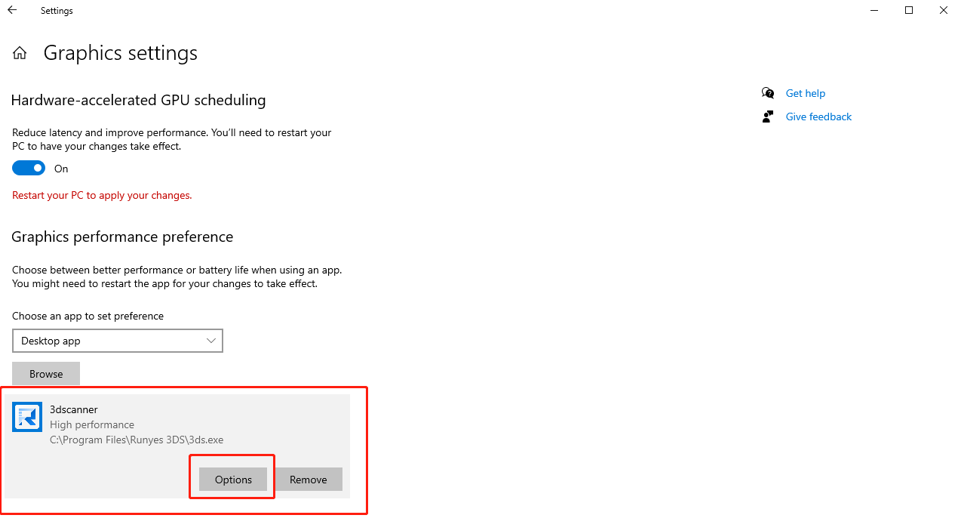

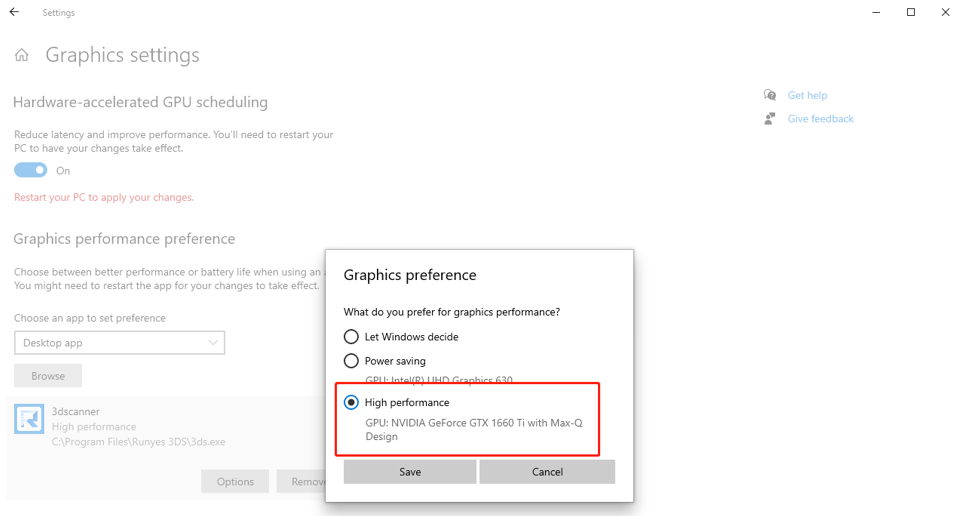

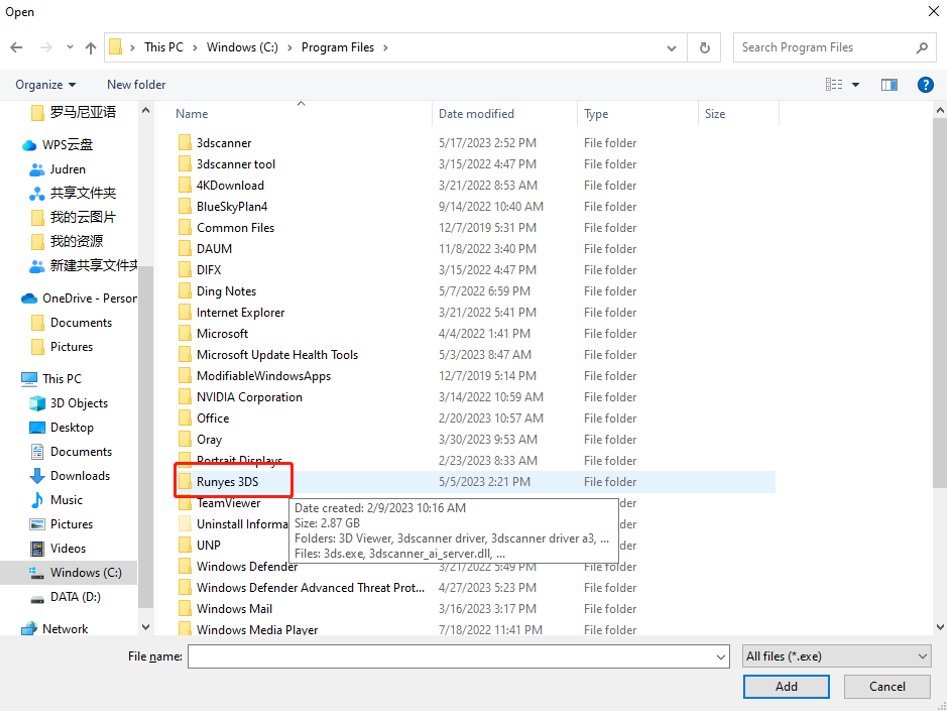

Graphics Settings

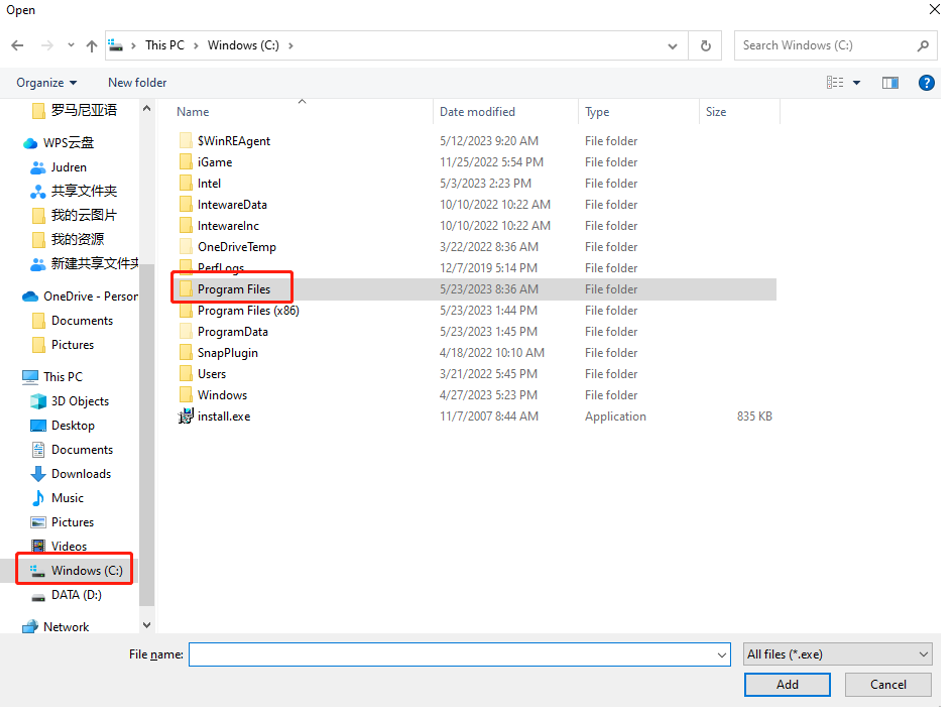

Set according to the areas marked in red in the image below.
Alt text
Alt text
Alt text
Alt text
Alt text
Alt text

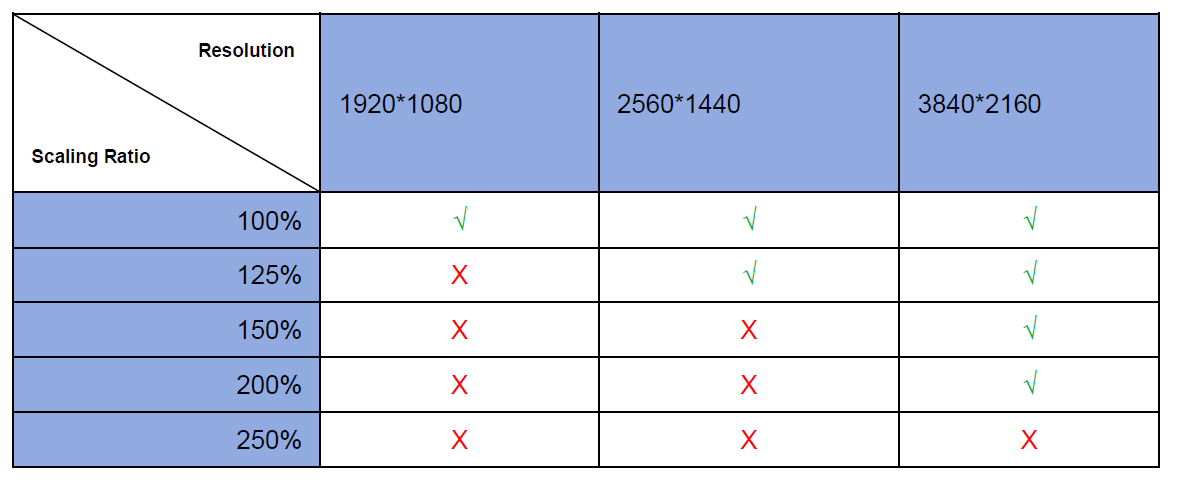

System Resolution Settings
Alt text

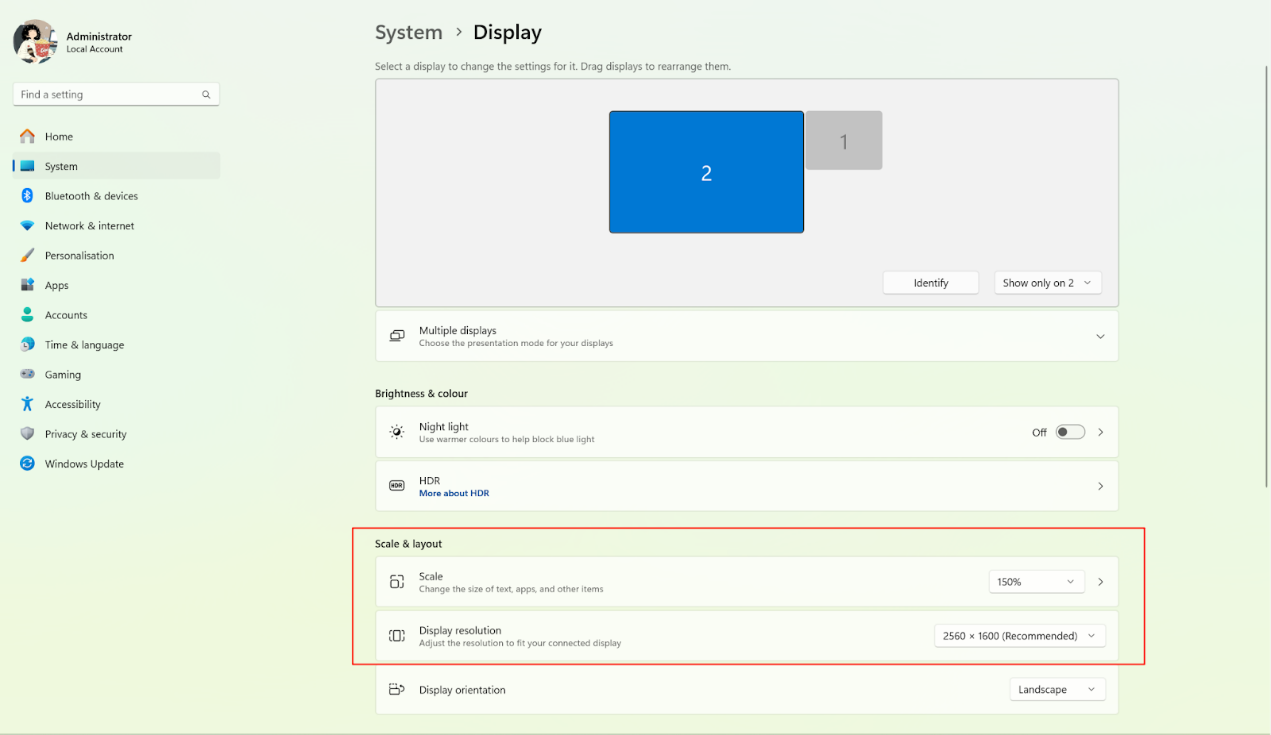

The settings interface is shown below (using Windows 11 as an example):
Alt text

Note:

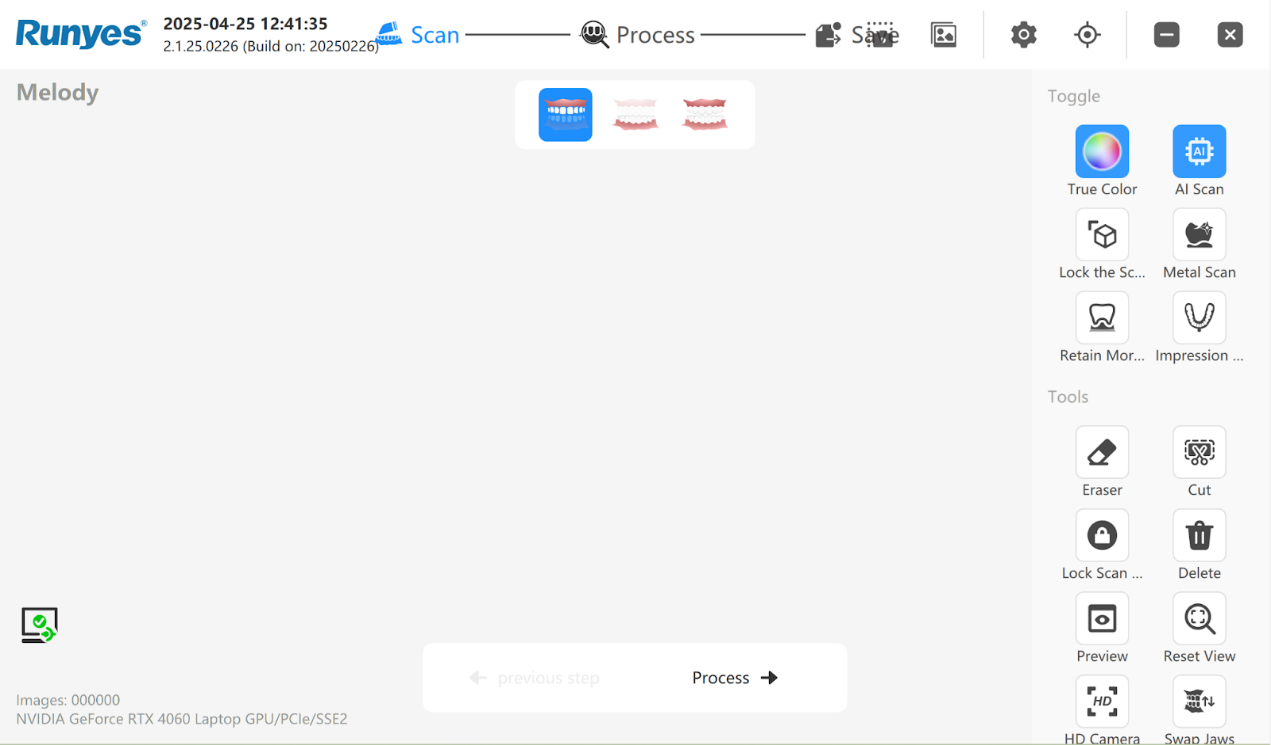

  • It is recommended to use the resolution * scaling ratio marked with “√” above. Incorrect settings may result in display issues, such as missing toolbar buttons.
    Alt text
  • If your monitor supports multiple resolutions listed above, you can choose the most suitable one based on actual display performance. For example, if you're using a large monitor (34 inches) that supports 3840×2160 resolution with both 200% and 100% scaling:
    - Setting it to 100% may cause text and icons to appear too small and difficult to read from a distance.
    - In this case, a 200% scaling ratio is recommended.
