Description of the scanning process

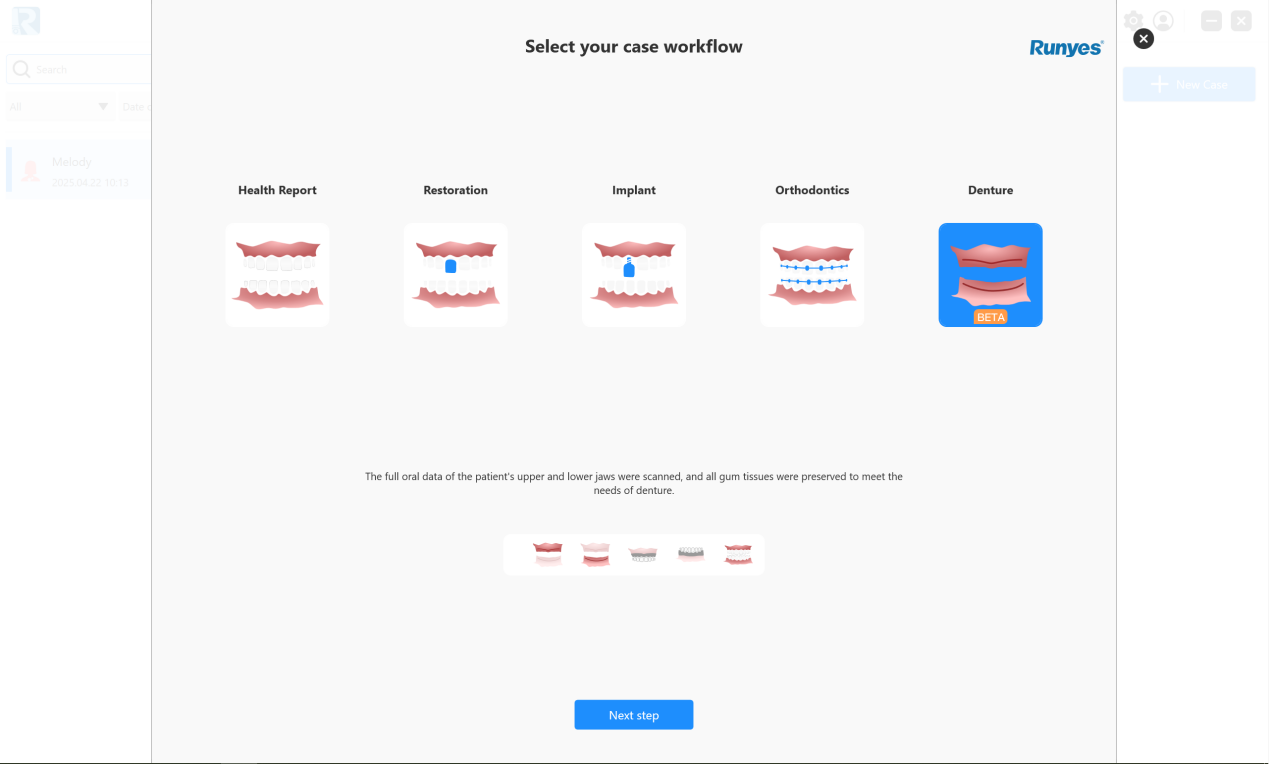

The scanning process of oral scanning software is divided into restoration, implant, orthodontics and health report.

Health report is a new feature of the new version of the software, and the scanning process is also for the upper jaw, lower jaw and occlusion. The difference is that in the process of optimization, AI intelligent algorithm will automatically identify the lesion area in the 3D shape of the image and teeth, which can be quickly added to the health report after confirmation by the doctor, so as to facilitate user viewing.

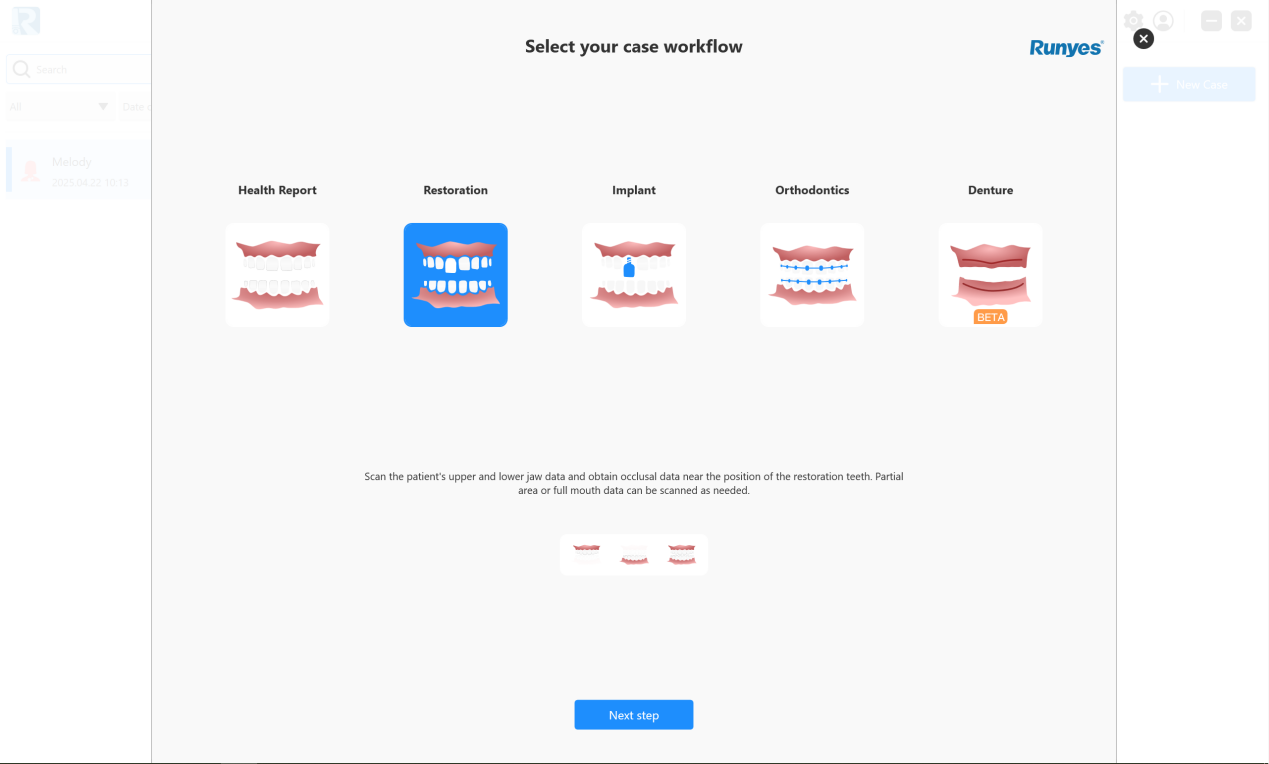

Repair scanning is one of the most commonly used processes of oral scanning software, which needs to scan the patient's upper and lower jaws and occlusion data separately. The initial scan position can be selected in the software settings for the upper or lower jaw. In the restoration mode, local scanning or full-mouth scanning can be carried out according to the condition of the teeth to be restored.

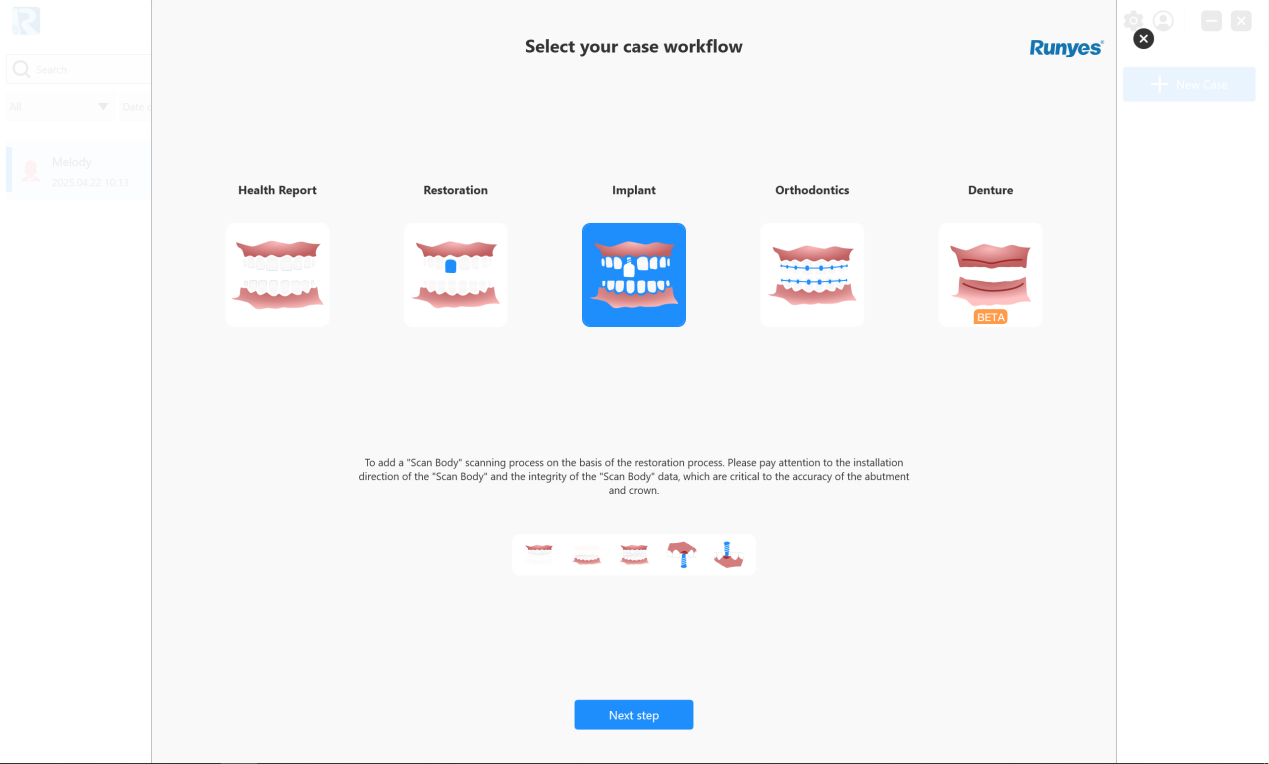

The process of implant scanning is based on the repair scanning, and the step of implant rod scanning is added. The obtained scanning rod data will be sent to the processing plant at the same time to accurately locate the depth and direction of the implant, and then design the abutment and crown on this basis.

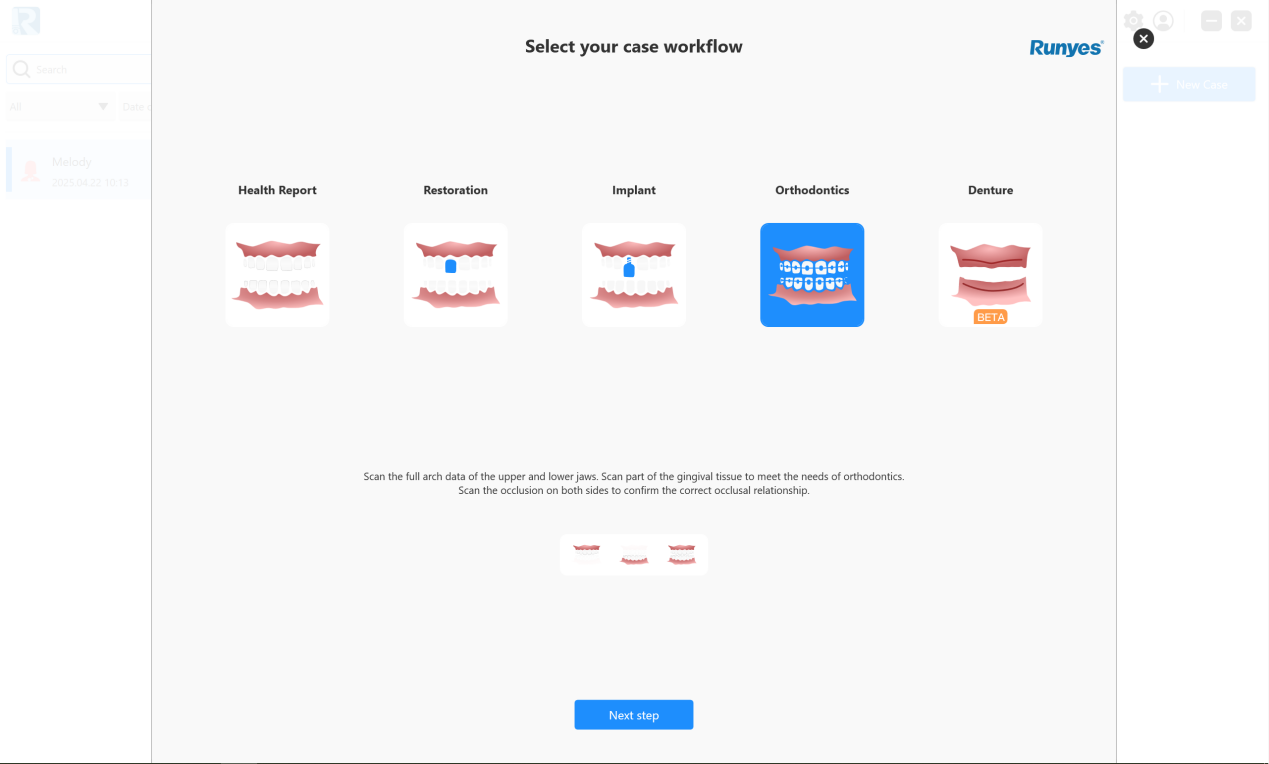

The orthodontic process needs to scan the patient's full-mouth data. In order to meet the data requirements of different orthodontic manufacturers, in addition to the tooth data, some gingival data and adjacent data should be scanned completely. Occlusal scanning should be performed on the left and right buccal sides to obtain more accurate occlusal relationship.
